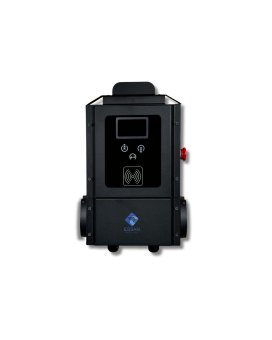

ESSAN 22 kW AC Site-Type Wallbox is designed to meet the controlled charging needs of areas with multiple users. It offers a practical and secure solution for site management with its card-based usage system and user-based energy tracking.
22 kW AC charging power provides fast and efficient charging with 3 phases.
Designed for site-type use; ideal for apartments and common areas.
RFID card identification can be set up for up to 12 users.
It has a fixed wireless design. It is used with the Type 2 charging cable that comes out of the vehicle.
Charging processes are initiated with a card and can only be used by authorized users.
User-based energy consumption can be tracked separately. (Each user can view their monthly charging amount.)
Real-time charging and device information can be monitored via the LCD display screen.
Includes low voltage, high voltage, overcurrent, and high temperature protections.
Features a modern and compact wallbox design for wall mounting.
It is locally designed and manufactured.
It comes with a 5-year warranty and after-sales support.
Optional features
The device comes standard with a socketed structure. It can be manufactured with an internal cable as needed. (5-8-15 meters)
The device can be remotely monitored and controlled via Wi-Fi connection.
Technical Specifications
| Maximum Power: | 22 kW |
|---|---|
| Input Voltage: | AC 380 V |
| Output Current: | 32A |
| Input Frequency: | 50-60 Hz |
